Flex Pro 500x1000
Excellent design for XR, studio, stage, concert etc. 2022 New Design.
19.7"x39.4" (500x1000mm) 30lbs(13.8kg)
Suitable for P1.953, P2.604, P2.976, P3.91 indoor/outdoor
Pixel Pitch
Pixels
LED Type
Scan Way
Brightness
Indoor
P1.953
256x512
SMD1515
1/32
≥1200 Nit
P2.604
192x384
SMD1515
1/32
≥1300 Nit
P2.976
168x336
SMD2121
1/28
≥1300 Nit
P3.91
128x256
SMD2121
1/16
≥1400 Nit
Outdoor
P2.976
168x336
SMD1415
1/28
≥4500 Nit
P3.91
128x256
SMD1921
1/16
≥5000 Nit
>=3,840Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit/18 bit+ Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Flex Pro 500x500
Excellent design for XR, studio, stage, concert etc. 2022 New Design.
19.7"x19.7" (500x500mm) 17.6lbs(8kg)
Suitable for P1.953, P2.604, P2.976, P3.91 indoor/outdoor
Pixel Pitch
Pixels
LED Type
Scan Way
Brightness
Indoor
P1.953
256x256
SMD1515
1/32
≥1200 Nit
P2.604
192x192
SMD1515
1/32
≥1300 Nit
P2.976
168x168
SMD2121
1/28
≥1300 Nit
P3.91
128x128
SMD2121
1/16
≥1400 Nit
Outdoor
P2.976
168x168
SMD1415
1/28
≥4500 Nit
P3.91
128x128
SMD1921
1/16
≥5000 Nit
>=3,840Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit/18 bit+ Gray Level
Neutrick PowerCon in/out
Ethercon in/out

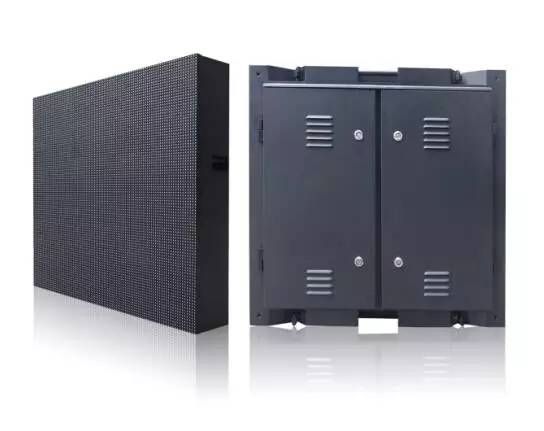

FB960 - Front service outdoor Billboard, P5.7/P6.67/P8/P10
Excellent design for outdoor Billbard
Features:
Light weight, very thin design, all Aluminal matieral
Both Front and backside service, Easy to maintain
Common cathode design, save energy.
37.8"x37.8"x3.3" (960x960x85mm) 62 lbs(28kg)
Suitable for P5.7, P6.67, P8, P10 outdoor
Pixel Pitch
Pixels
LED Type
Scan Way
Brightness
P5.7
168x168
SMD2727
1/8
≥5000 Nit
P6.67
145x145
SMD2727
1/6
≥6000 Nit
P8
120x120
SMD3535
1/4
≥7000 Nit
P10
96x96
SMD2121
1/2
≥7000 Nit
>=3,840 Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit/18 bit+ Gray Level
Neutrick PowerCon in/out
Ethercon in/out

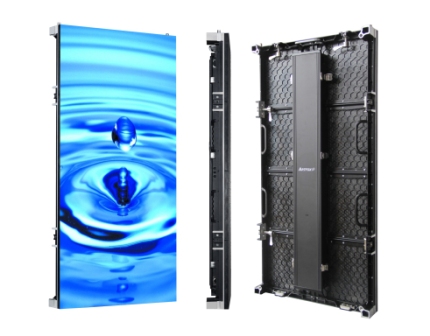

Smart Pro 3.91L/P4.81L Outdoor 500x1000
19.7"x39.4" (500x1000mm) 30lbs(13.8kg)
Suitable for P2.976, P3.91,P4.81 indoor/outdoor
Pixel Pitch Pixels LED Type Scan Way Brightness Indoor P2.976 168x336 SMD2121 1/28 ≥1300 Nit P3.91 128x256 SMD2121 1/16 ≥1400 Nit P4.81 104x208 SMD2121 1/13 ≥1500 Nit Outdoor P2.976 168x336 SMD1415 1/28 ≥4500 Nit P3.91 128x256 SMD1921 1/16 ≥5000 Nit P4.81 104x208 SMD2727 1/13 ≥6000 Nit
≥3,840Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Smart P3.91L/ P4.81L Outdoor 500x1000
19.7"x39.4" (500x1000mm) 40lbs(18kg)
Suitable for P3.91,P4.81,P5.95 indoor/outdoor
Pixel Pitch
Pixels
LED Type
Scan Way
Brightness
Indoor
P3.91
128x256
SMD2121
1/16
≥1400 Nit
P4.81
104x208
SMD2121
1/8
≥1200 Nit
P5.95
84x168
SMD3528
1/7
≥1400 Nit
Outdoor
P3.91
128x256
SMD1921
1/16
≥6000 Nit
P4.81
104x208
SMD2727
1/13
≥6000 Nit
P5.95
84x168
SMD3535
1/7
≥6500 Nit
≥3,840Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Transparent LED screen, Blinds LED Screen
39.4"x19.7"x3.1" (1000x500mmx8mm) 12.7 lbs(5.8kg)
Suitable for w: P3.91, Height: P7.82 indoor outdoor
Module size: 125x500mm
Width Pixel Pitch Height Pixels Pitch Pixels LED Type Scan Way Brightness P3.91 P7.82 256x64 SMD1921 1/8 4500 nit outdoor use P3.91 P7.82 256x64 SMD2121 1/8 1200 nit indoor use
Power cosumption: Maxium 300w
≥3,840Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Snap P2.6/2.9/3.9
Front and Rear Maintainess, no screwer and maginet, new Technology
19.7"x19.7" (500x500mm) 17.6lbs(8kg)
Suitable for P2.6, P2.976, P3.91,P4.81,P5.95 indoor/outdoor,
Pixel Pitch Pixels LED Type Scan Way Brightness Indoor P2.6 192x192 SMD1515 1/32 ≥1400 Nit P2.976 168x168 SMD2121 1/28 ≥1200 Nit P3.91 128x128 SMD2121 1/16 ≥1400 Nit P4.81 104x104 SMD2121 1/8 ≥1200 Nit P5.95 84x84 SMD3528 1/7 ≥1400 Nit Outdoor P3.91 128x128 SMD1921 1/16 ≥6000 Nit P4.81 104x104 SMD2727 1/13 ≥6000 Nit P5.95 84x84 SMD3535 1/7 ≥6500 Nit
≥3,840Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
XMen P6 outdoor
22.7"x22.7" (576x576mm) 24.2lbs(11kg)
Suitable for P3,P6 indoor/outdoor
Pixel Pitch
Pixels
LED Type
Scan Way
Brightness
Indoor
P3
192x192
SMD2121
1/16
≥1600 Nit
P6
96x96
SMD3528
1/8
≥1800 Nit
Outdoor
P6
96x96
SMD3535
1/8
≥7000 Nit
≥3,840Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Dance floor P3.91/P4.81/P6.25
LED screen dance floor, Optional built-in reactive led screen dance floor
19.7"x39.4" (500x1000mm) 25.2lbs(12kg)
Pixel pitch: P3.91,P4.81,P6.25
Easy to setup and unsetup, can take out one panel out in the middle easily.
Pixel Pitch Pixels LED Type Scan Way Brightness P3.91 128x256 SMD1921 1/16 ≥5000 Nit P4.81 104x208 SMD1921 1/13 ≥5500 Nit P6.25 80x160 SMD3535 1/7 ≥6500 Nit
≥1,920Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Flex Pro 500x1000
Excellent design for XR, studio, stage, concert etc. 2022 New Design.
19.7"x39.4" (500x1000mm) 30lbs(13.8kg)
Suitable for P1.953, P2.604, P2.976, P3.91 indoor/outdoor
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness | |
| Indoor | P1.953 | 256x512 | SMD1515 | 1/32 | ≥1200 Nit |
| P2.604 | 192x384 | SMD1515 | 1/32 | ≥1300 Nit | |
| P2.976 | 168x336 | SMD2121 | 1/28 | ≥1300 Nit | |
| P3.91 | 128x256 | SMD2121 | 1/16 | ≥1400 Nit | |
| Outdoor | P2.976 | 168x336 | SMD1415 | 1/28 | ≥4500 Nit |
| P3.91 | 128x256 | SMD1921 | 1/16 | ≥5000 Nit |
>=3,840Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit/18 bit+ Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Flex Pro 500x500
Excellent design for XR, studio, stage, concert etc. 2022 New Design.
19.7"x19.7" (500x500mm) 17.6lbs(8kg)
Suitable for P1.953, P2.604, P2.976, P3.91 indoor/outdoor
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness | |
| Indoor | P1.953 | 256x256 | SMD1515 | 1/32 | ≥1200 Nit |
| P2.604 | 192x192 | SMD1515 | 1/32 | ≥1300 Nit | |
| P2.976 | 168x168 | SMD2121 | 1/28 | ≥1300 Nit | |
| P3.91 | 128x128 | SMD2121 | 1/16 | ≥1400 Nit | |
| Outdoor | P2.976 | 168x168 | SMD1415 | 1/28 | ≥4500 Nit |
| P3.91 | 128x128 | SMD1921 | 1/16 | ≥5000 Nit |
>=3,840Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit/18 bit+ Gray Level
Neutrick PowerCon in/out
Ethercon in/out
FB960 - Front service outdoor Billboard, P5.7/P6.67/P8/P10
Excellent design for outdoor Billbard
Features:
Light weight, very thin design, all Aluminal matieral
Both Front and backside service, Easy to maintain
Common cathode design, save energy.
37.8"x37.8"x3.3" (960x960x85mm) 62 lbs(28kg)
Suitable for P5.7, P6.67, P8, P10 outdoor
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness |
| P5.7 | 168x168 | SMD2727 | 1/8 | ≥5000 Nit |
| P6.67 | 145x145 | SMD2727 | 1/6 | ≥6000 Nit |
| P8 | 120x120 | SMD3535 | 1/4 | ≥7000 Nit |
| P10 | 96x96 | SMD2121 | 1/2 | ≥7000 Nit |
>=3,840 Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit/18 bit+ Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Smart Pro 3.91L/P4.81L Outdoor 500x1000
19.7"x39.4" (500x1000mm) 30lbs(13.8kg)
Suitable for P2.976, P3.91,P4.81 indoor/outdoor
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness | |
| Indoor | P2.976 | 168x336 | SMD2121 | 1/28 | ≥1300 Nit |
| P3.91 | 128x256 | SMD2121 | 1/16 | ≥1400 Nit | |
| P4.81 | 104x208 | SMD2121 | 1/13 | ≥1500 Nit | |
| Outdoor | P2.976 | 168x336 | SMD1415 | 1/28 | ≥4500 Nit |
| P3.91 | 128x256 | SMD1921 | 1/16 | ≥5000 Nit | |
| P4.81 | 104x208 | SMD2727 | 1/13 | ≥6000 Nit |
≥3,840Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Smart P3.91L/ P4.81L Outdoor 500x1000
19.7"x39.4" (500x1000mm) 40lbs(18kg)
Suitable for P3.91,P4.81,P5.95 indoor/outdoor
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness | |
| Indoor | P3.91 | 128x256 | SMD2121 | 1/16 | ≥1400 Nit |
| P4.81 | 104x208 | SMD2121 | 1/8 | ≥1200 Nit | |
| P5.95 | 84x168 | SMD3528 | 1/7 | ≥1400 Nit | |
| Outdoor | P3.91 | 128x256 | SMD1921 | 1/16 | ≥6000 Nit |
| P4.81 | 104x208 | SMD2727 | 1/13 | ≥6000 Nit | |
| P5.95 | 84x168 | SMD3535 | 1/7 | ≥6500 Nit |
≥3,840Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Transparent LED screen, Blinds LED Screen
39.4"x19.7"x3.1" (1000x500mmx8mm) 12.7 lbs(5.8kg)
Suitable for w: P3.91, Height: P7.82 indoor outdoor
Module size: 125x500mm
| Width Pixel Pitch | Height Pixels Pitch | Pixels | LED Type | Scan Way | Brightness |
| P3.91 | P7.82 | 256x64 | SMD1921 | 1/8 | 4500 nit outdoor use |
| P3.91 | P7.82 | 256x64 | SMD2121 | 1/8 | 1200 nit indoor use |
Power cosumption: Maxium 300w
≥3,840Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Snap P2.6/2.9/3.9
Front and Rear Maintainess, no screwer and maginet, new Technology
19.7"x19.7" (500x500mm) 17.6lbs(8kg)
Suitable for P2.6, P2.976, P3.91,P4.81,P5.95 indoor/outdoor,
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness | |
| Indoor | P2.6 | 192x192 | SMD1515 | 1/32 | ≥1400 Nit |
| P2.976 | 168x168 | SMD2121 | 1/28 | ≥1200 Nit | |
| P3.91 | 128x128 | SMD2121 | 1/16 | ≥1400 Nit | |
| P4.81 | 104x104 | SMD2121 | 1/8 | ≥1200 Nit | |
| P5.95 | 84x84 | SMD3528 | 1/7 | ≥1400 Nit | |
| Outdoor | P3.91 | 128x128 | SMD1921 | 1/16 | ≥6000 Nit |
| P4.81 | 104x104 | SMD2727 | 1/13 | ≥6000 Nit | |
| P5.95 | 84x84 | SMD3535 | 1/7 | ≥6500 Nit |
≥3,840Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
XMen P6 outdoor
22.7"x22.7" (576x576mm) 24.2lbs(11kg)
Suitable for P3,P6 indoor/outdoor
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness | |
| Indoor | P3 | 192x192 | SMD2121 | 1/16 | ≥1600 Nit |
| P6 | 96x96 | SMD3528 | 1/8 | ≥1800 Nit | |
| Outdoor | P6 | 96x96 | SMD3535 | 1/8 | ≥7000 Nit |
≥3,840Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Dance floor P3.91/P4.81/P6.25
LED screen dance floor, Optional built-in reactive led screen dance floor
19.7"x39.4" (500x1000mm) 25.2lbs(12kg)
Pixel pitch: P3.91,P4.81,P6.25
Easy to setup and unsetup, can take out one panel out in the middle easily.
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness |
| P3.91 | 128x256 | SMD1921 | 1/16 | ≥5000 Nit |
| P4.81 | 104x208 | SMD1921 | 1/13 | ≥5500 Nit |
| P6.25 | 80x160 | SMD3535 | 1/7 | ≥6500 Nit |
≥1,920Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Outdoor Rental LED Display
FB960 - Front service outdoor Billboard, P5.7/P6.67/P8/P10
Excellent design for outdoor Billbard
Features:
Light weight, very thin design, all Aluminal matieral
Both Front and backside service, Easy to maintain
Common cathode design, save energy.
37.8"x37.8"x3.3" (960x960x85mm) 62 lbs(28kg)
Suitable for P5.7, P6.67, P8, P10 outdoor
Pixel Pitch
Pixels
LED Type
Scan Way
Brightness
P5.7
168x168
SMD2727
1/8
≥5000 Nit
P6.67
145x145
SMD2727
1/6
≥6000 Nit
P8
120x120
SMD3535
1/4
≥7000 Nit
P10
96x96
SMD2121
1/2
≥7000 Nit
>=3,840 Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit/18 bit+ Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Flat 3.91/4.81/5.95
19.7"x19.7" (500x500mm) 22lbs(10kg)
Suitable for P3.91,P4.81,P5.95 indoor/outdoor
Pixel Pitch
Pixels
LED Type
Scan Way
Brightness
Indoor
P3.91
128x128
SMD2121
1/16
≥1400 Nit
P4.81
104x104
SMD2121
1/8
≥1200 Nit
P5.95
84x84
SMD3528
1/7
≥1400 Nit
Outdoor
P3.91
128x128
SMD1921
1/16
≥6000 Nit
P4.81
104x104
SMD2727
1/13
≥6000 Nit
P5.95
84x84
SMD3535
1/7
≥6500 Nit
≥1,920Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Strong 2/4/8
20.2"x20.2" (512x512mm) 22lbs(10kg)
Suitable for P2, P4, P8 indoor/outdoor
Pixel Pitch
Pixels
LED Type
Scan Way
Brightness
Indoor
P2
256x256
SMD1010
1/32
≥1100 Nit
P4
128x128
SMD2121
1/16
≥1200 Nit
Outdoor
P4
128x128
SMD2727
1/8
≥6500 Nit
P8
64x64
SMD3535
1/4
≥7000 Nit
≥1,920Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Easy 3/5/6
22.7"x22.7" (576x576mm) 24.2lbs(11kg), Suitable for P3,P6 indoor/outdoor
25.2"x25.2" (640x640mm) 29lbs(13.2kg), Suitable for P5 indoor/outdoor
Pixel Pitch
Pixels
LED Type
Scan Way
Brightness
Indoor
P3
192x192
SMD2121
1/16
≥1600 Nit
P5
128x128
SMD3528
1/16
≥1200 Nit
P6
96x96
SMD3528
1/8
≥1800 Nit
Outdoor
P5
128x128
SMD3535
1/8
≥7000 Nit
P6
96x96
SMD3535
1/8
≥7000 Nit
≥1,920Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
XMen 3/6
22.7"x22.7" (576x576mm) 24.2lbs(11kg)
Suitable for P3,P6 indoor/outdoor
Pixel Pitch
Pixels
LED Type
Scan Way
Brightness
Indoor
P3
192x192
SMD2121
1/16
≥1600 Nit
P6
96x96
SMD3528
1/8
≥1800 Nit
Outdoor
P6
96x96
SMD3535
1/8
≥7000 Nit
≥1,920Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Outdoor Led screen, BillBoard screen
Pixel Pitch: P4, P5, P6, P8, P10 outdoor
Pixel Pitch
Module Pixels
Module Size
LED Type
Scan Way
Brightness
P4
64x32
256x128mm
SMD1921
1/8
≥7000 Nit
P5
64x32
320x160mm
SMD3535
1/8
≥7000 Nit
P6
32x32
192x192mm
SMD3535
1/8
≥6500 Nit
P8
32x16
256x128mm
SMD3535
1/4
≥7000 Nit
P10
16x16
160x160mm
SMD3535/DIP
1/2
≥7000 Nit
≥1,920Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
FB960 - Front service outdoor Billboard, P5.7/P6.67/P8/P10
Excellent design for outdoor Billbard
Features:
Light weight, very thin design, all Aluminal matieral
Both Front and backside service, Easy to maintain
Common cathode design, save energy.
37.8"x37.8"x3.3" (960x960x85mm) 62 lbs(28kg)
Suitable for P5.7, P6.67, P8, P10 outdoor
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness |
| P5.7 | 168x168 | SMD2727 | 1/8 | ≥5000 Nit |
| P6.67 | 145x145 | SMD2727 | 1/6 | ≥6000 Nit |
| P8 | 120x120 | SMD3535 | 1/4 | ≥7000 Nit |
| P10 | 96x96 | SMD2121 | 1/2 | ≥7000 Nit |
>=3,840 Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit/18 bit+ Gray Level
Neutrick PowerCon in/out
Ethercon in/out

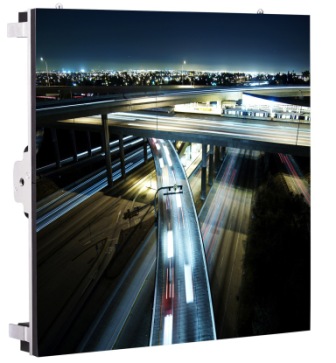

Flat 3.91/4.81/5.95
19.7"x19.7" (500x500mm) 22lbs(10kg)
Suitable for P3.91,P4.81,P5.95 indoor/outdoor
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness | |
| Indoor | P3.91 | 128x128 | SMD2121 | 1/16 | ≥1400 Nit |
| P4.81 | 104x104 | SMD2121 | 1/8 | ≥1200 Nit | |
| P5.95 | 84x84 | SMD3528 | 1/7 | ≥1400 Nit | |
| Outdoor | P3.91 | 128x128 | SMD1921 | 1/16 | ≥6000 Nit |
| P4.81 | 104x104 | SMD2727 | 1/13 | ≥6000 Nit | |
| P5.95 | 84x84 | SMD3535 | 1/7 | ≥6500 Nit |
≥1,920Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out

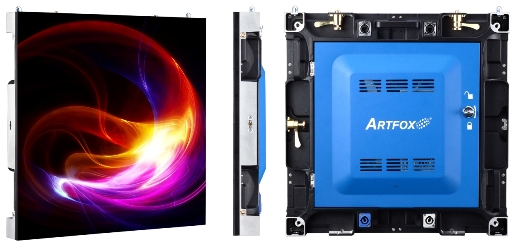

Strong 2/4/8
20.2"x20.2" (512x512mm) 22lbs(10kg)
Suitable for P2, P4, P8 indoor/outdoor
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness | |
| Indoor | P2 | 256x256 | SMD1010 | 1/32 | ≥1100 Nit |
| P4 | 128x128 | SMD2121 | 1/16 | ≥1200 Nit | |
| Outdoor | P4 | 128x128 | SMD2727 | 1/8 | ≥6500 Nit |
| P8 | 64x64 | SMD3535 | 1/4 | ≥7000 Nit |
≥1,920Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Easy 3/5/6
22.7"x22.7" (576x576mm) 24.2lbs(11kg), Suitable for P3,P6 indoor/outdoor
25.2"x25.2" (640x640mm) 29lbs(13.2kg), Suitable for P5 indoor/outdoor
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness | |
| Indoor | P3 | 192x192 | SMD2121 | 1/16 | ≥1600 Nit |
| P5 | 128x128 | SMD3528 | 1/16 | ≥1200 Nit | |
| P6 | 96x96 | SMD3528 | 1/8 | ≥1800 Nit | |
| Outdoor | P5 | 128x128 | SMD3535 | 1/8 | ≥7000 Nit |
| P6 | 96x96 | SMD3535 | 1/8 | ≥7000 Nit |
≥1,920Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out

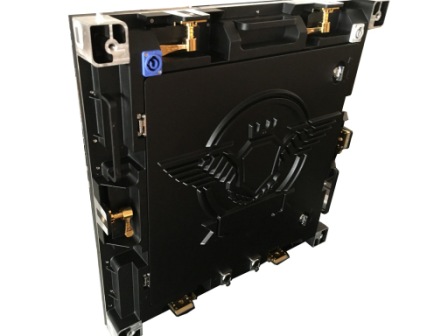

XMen 3/6
22.7"x22.7" (576x576mm) 24.2lbs(11kg)
Suitable for P3,P6 indoor/outdoor
| Pixel Pitch | Pixels | LED Type | Scan Way | Brightness | |
| Indoor | P3 | 192x192 | SMD2121 | 1/16 | ≥1600 Nit |
| P6 | 96x96 | SMD3528 | 1/8 | ≥1800 Nit | |
| Outdoor | P6 | 96x96 | SMD3535 | 1/8 | ≥7000 Nit |
≥1,920Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Neutrick PowerCon in/out
Ethercon in/out
Outdoor Led screen, BillBoard screen
Pixel Pitch: P4, P5, P6, P8, P10 outdoor
| Pixel Pitch | Module Pixels | Module Size | LED Type | Scan Way | Brightness |
| P4 | 64x32 | 256x128mm | SMD1921 | 1/8 | ≥7000 Nit |
| P5 | 64x32 | 320x160mm | SMD3535 | 1/8 | ≥7000 Nit |
| P6 | 32x32 | 192x192mm | SMD3535 | 1/8 | ≥6500 Nit |
| P8 | 32x16 | 256x128mm | SMD3535 | 1/4 | ≥7000 Nit |
| P10 | 16x16 | 160x160mm | SMD3535/DIP | 1/2 | ≥7000 Nit |
≥1,920Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Outdoor Fixed LED Display
FixOut Series
Pixel Pitch: P4, P5, P6, P8, P10 outdoor
Pixel Pitch
Module Pixels
Module Size
LED Type
Scan Way
Brightness
P4
64x32
256x128mm
SMD2727
1/8
≥7000 Nit
P5
64x32
320x160mm
SMD2727
1/8
≥7000 Nit
P6
32x32
192x192mm
SMD3528
1/8
≥6500 Nit
P8
32x16
256x128mm
SMD3535
1/4
≥7000 Nit
P10
16x16
160x160mm
SMD3535/DIP
1/2
≥7000 Nit
≥1,920Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Outdoor Led screen, BillBoard screen
Pixel Pitch: P4, P5, P6, P8, P10 outdoor
Pixel Pitch
Module Pixels
Module Size
LED Type
Scan Way
Brightness
P4
64x32
256x128mm
SMD1921
1/8
≥7000 Nit
P5
64x32
320x160mm
SMD3535
1/8
≥7000 Nit
P6
32x32
192x192mm
SMD3535
1/8
≥6500 Nit
P8
32x16
256x128mm
SMD3535
1/4
≥7000 Nit
P10
16x16
160x160mm
SMD3535/DIP
1/2
≥7000 Nit
≥1,920Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Inquiry
We will reply you in 24 hours, and please feel free to call +1-(323)287-5559 or email to sales@artfox.net
FixOut Series
Pixel Pitch: P4, P5, P6, P8, P10 outdoor
| Pixel Pitch | Module Pixels | Module Size | LED Type | Scan Way | Brightness |
| P4 | 64x32 | 256x128mm | SMD2727 | 1/8 | ≥7000 Nit |
| P5 | 64x32 | 320x160mm | SMD2727 | 1/8 | ≥7000 Nit |
| P6 | 32x32 | 192x192mm | SMD3528 | 1/8 | ≥6500 Nit |
| P8 | 32x16 | 256x128mm | SMD3535 | 1/4 | ≥7000 Nit |
| P10 | 16x16 | 160x160mm | SMD3535/DIP | 1/2 | ≥7000 Nit |
≥1,920Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Outdoor Led screen, BillBoard screen
Pixel Pitch: P4, P5, P6, P8, P10 outdoor
| Pixel Pitch | Module Pixels | Module Size | LED Type | Scan Way | Brightness |
| P4 | 64x32 | 256x128mm | SMD1921 | 1/8 | ≥7000 Nit |
| P5 | 64x32 | 320x160mm | SMD3535 | 1/8 | ≥7000 Nit |
| P6 | 32x32 | 192x192mm | SMD3535 | 1/8 | ≥6500 Nit |
| P8 | 32x16 | 256x128mm | SMD3535 | 1/4 | ≥7000 Nit |
| P10 | 16x16 | 160x160mm | SMD3535/DIP | 1/2 | ≥7000 Nit |
≥1,920Hz Refresh rate/60h Frame Rate
Auto free voltage 100v-240v Power Supply
16 bit Gray Level
Inquiry
We will reply you in 24 hours, and please feel free to call +1-(323)287-5559 or email to sales@artfox.net
