Description

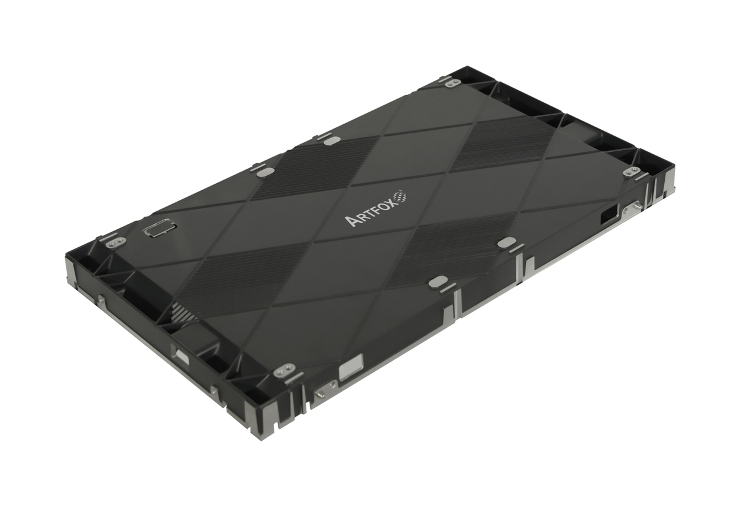

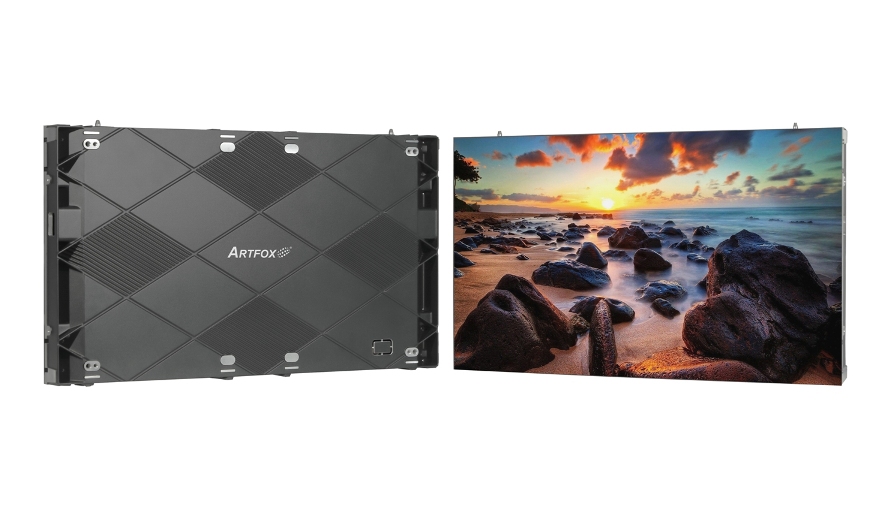

23.6x13.3x1.6" (600x337.5x40mm) 8.8 lbs(4kg)
16:9 Ratio
P0.78 P0.93 P1.25 P1.56 P1.87 COB

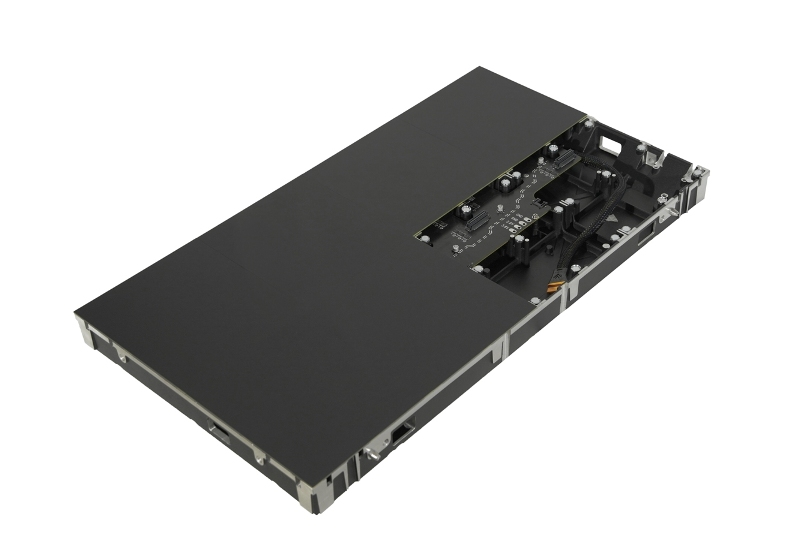

Front Service

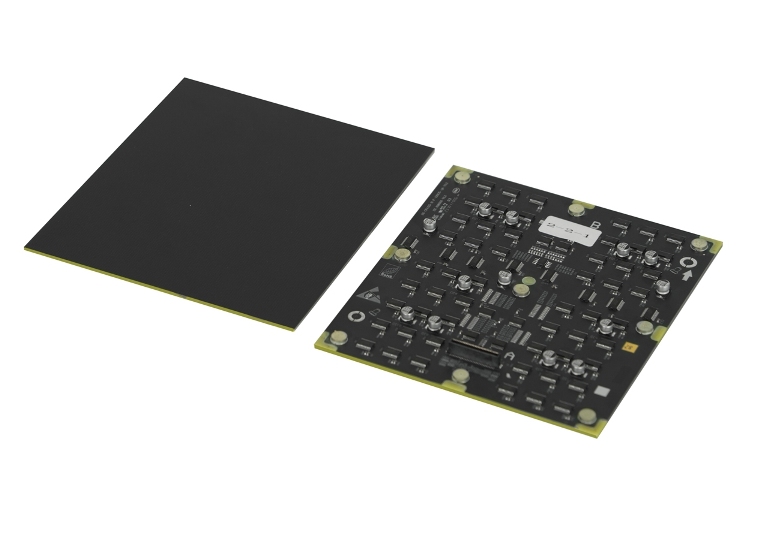

Module Size: 150x168.75mm
Each panel 8 modules
Max Power: 80w each panel

Pixel Pitch	Module Pixels	Panel pixels	IP Rate	ScanWay	Brightness
P0.78	192x216	768x432	IP54	1/48	≥800 Nit
P0.93	160x180	640x360	IP54	1/54	≥700 Nit
P1.25	120x135	480x270	IP54	1/60	≥700 Nit
P1.56	96x108	384x216	IP54	1/54	≥700 Nit
P1.87	80x90	320x180	IP54	1/40	≥700 Nit

>=3,840 to 7680Hz Refresh rate/60h Frame Rate

Auto free voltage 100v-240v Power Supply

16 bit/18 bit+ Gray Level

Neutrick PowerCon in/out

Ethercon in/out
