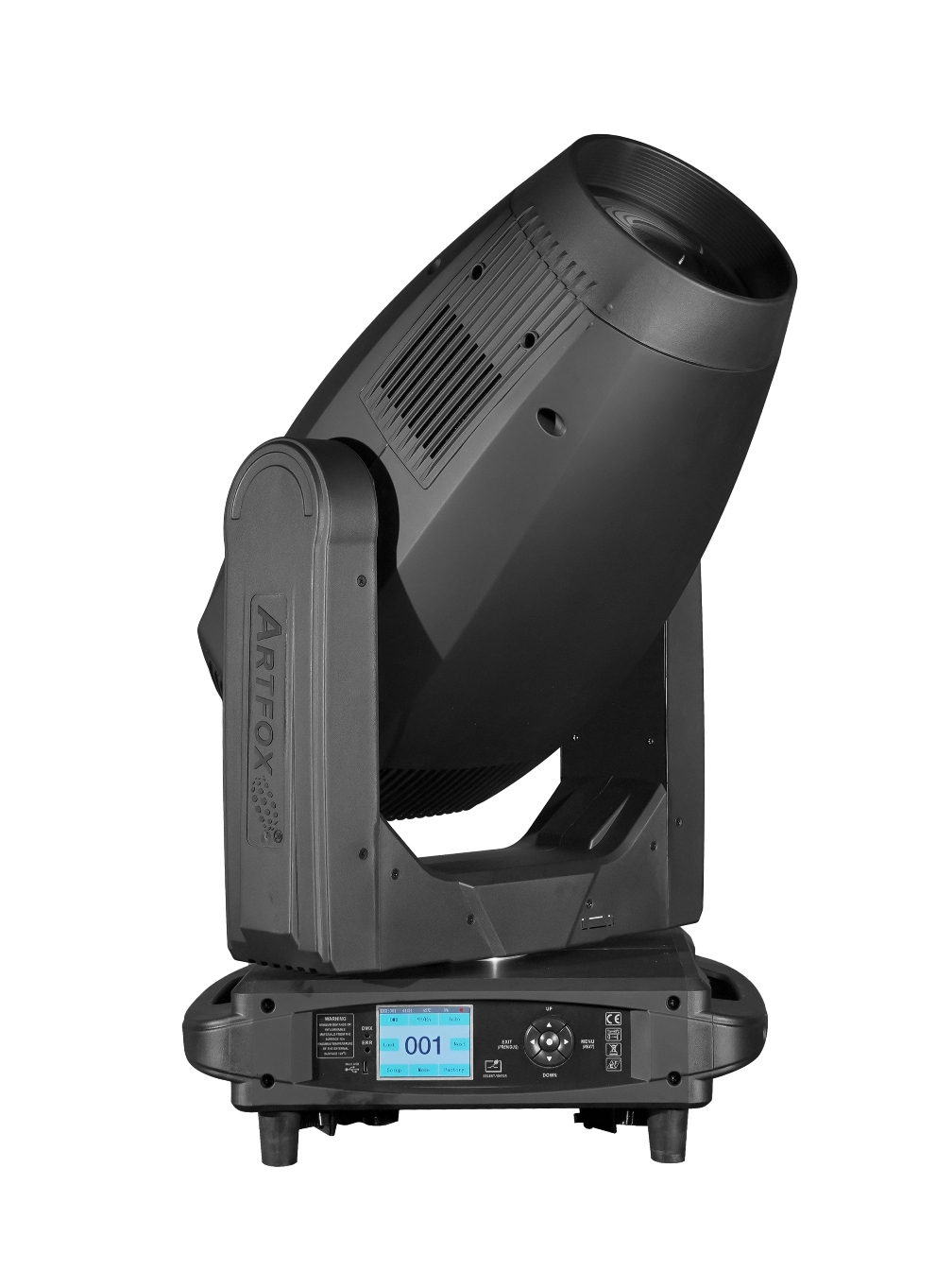

Description

Matrix Profile F2 is compact and lightweight a an immense 680-Watt LED engine, an impressive 65,000+ Lumens, and expansive feature set, . A 4-blade rotatable framing system, alongside motorized zoom (6 ~ 45 degrees), motorized focus and iris, together with 2 frost filters, facilitate precise manipulation of the output. A CMY color mixing system, combined with a CTO flag and 7 slot replaceable color wheel, allow for exceptional versatility and creative freedom. Meanwhile, 2 GOBO wheels (2 rotating replaceable gobos), 2 rotating prisms(4-facet prism +6 liner facet prism), and an animation wheel allow for the creation of an almost unlimited variety of aerial effects and surface pattern projections.


Features:

• Motorized Focus
• 2 gobo wheels, replaceable glass gobo.
• Beam Angle: 6°~ 45°, zoom
• 4 Rotating Framing Shutters, +/-90°, plus shape rotation
• Iris
. CT0 (2,700k to 6,500k)
• Animation Wheel
• 2 Prism FX: Rotating 6-facet Linear & rotating 4-facet Circular
• 0-100% smooth dimming
• Various strobe speeds 1-25hz
• 2 cooling fans

Light Source:
• 680W Cold White LED Engine (50,000 hr,6,500k.)
• 65,000+ Lumens max
• CRI: 70 and 90 (Out of the fixture)

Color:
• CMY color mixing system
• Variable CTO flag
• Color wheel with 7 dichroic colors + white (includes CTB and High CRI filters)
• Colors on wheel are removable and replaceable

Gobo Wheels:
• (1) Rotating glass Gobo wheel with 7 Gobos
• (1) glass Gobo wheel with 8 Gobos
• All Gobo’s are replaceable
• Gobo Shake Effect on both wheels
• Gobo1 size: 25.4mm (outer); 16mm (viewable); 0.5mm (thickness)
• Glass gobo2 size: 25.4mm (outer); 16mm (viewable); 3.3mm (thickness)

Prism Wheel:
• Prism Wheel 1: Rotatable 6-facet Linear
• Prism Wheel 2: Rotatable 4-facet Circular
• Both Prisms are indexable

Frost Filters:
• Frost 1: Heavy frost for wash effect

Control:
• 3 DMX Channel Modes: 41chs
• Color LCD display with 4-button function menu
• Control Mode: DMX512 or internal programs
• 6 Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage2
• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
• Selectable LED Refresh Rates (900 Hz~25K Hz)
• 0-100% smooth dimming
• Various strobe speeds
• With Wired Digital Communication Network
• RDM (Remote Device Management)
. ARTNET

Pan/Tilt:
• Pan: 540 degrees
• Tilt: 270 degrees
• Pan & Tilt Locks

Connections:

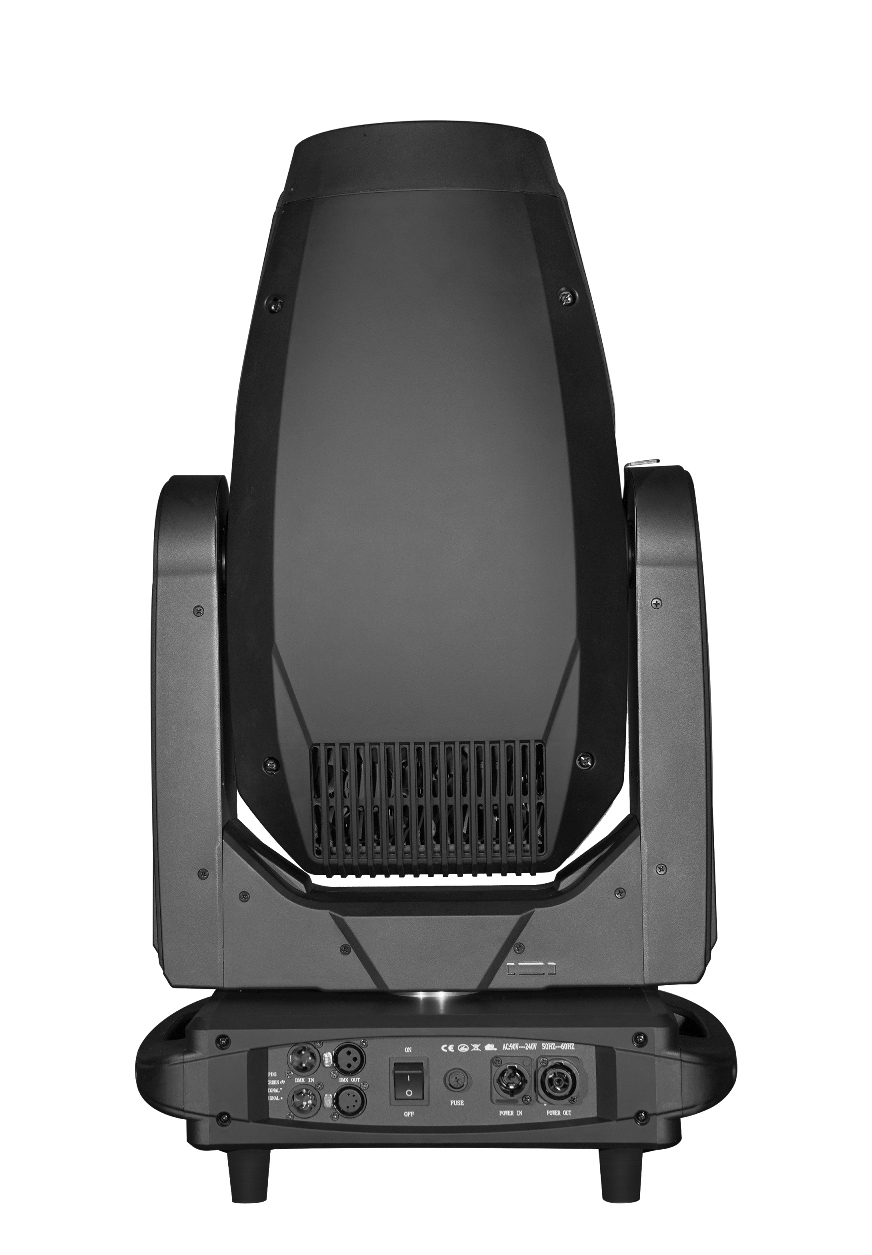

• DMX Connections: 3/5-pin XLR In/Out
• Power Connections: Ture1
. Date in&out: Artnet(for optional)
• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 950W

Dimensions & Weight:
• Dimensions (LxWxH): 16.4" x16" x 27.5" (416x408x700mm)
• Weight:64.9lbs (29.5kg)
