Description

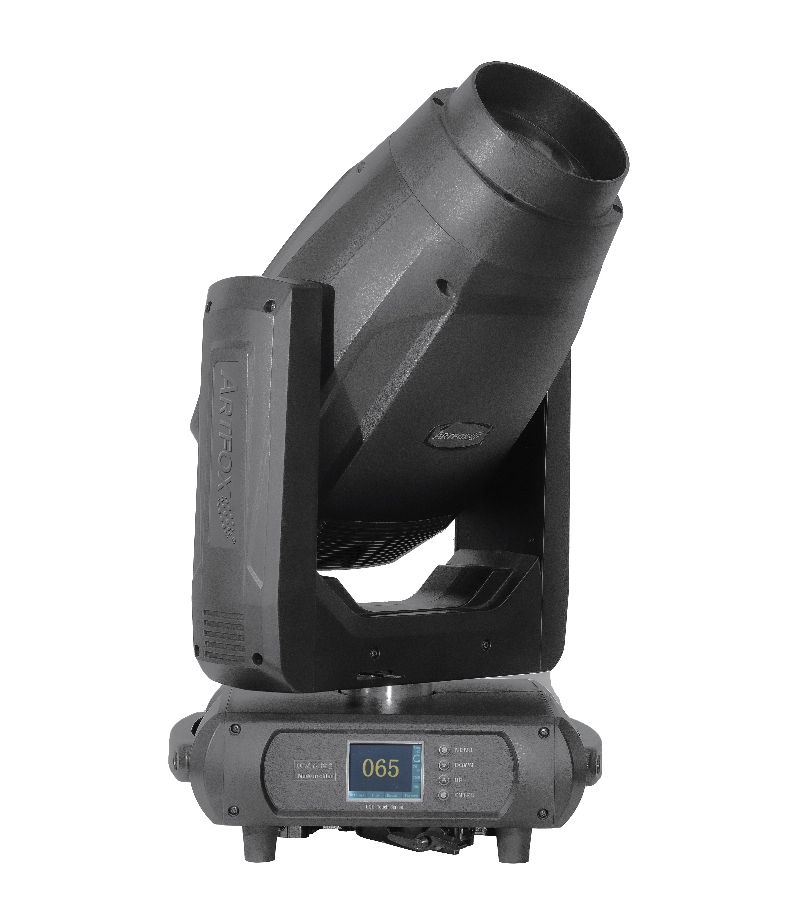

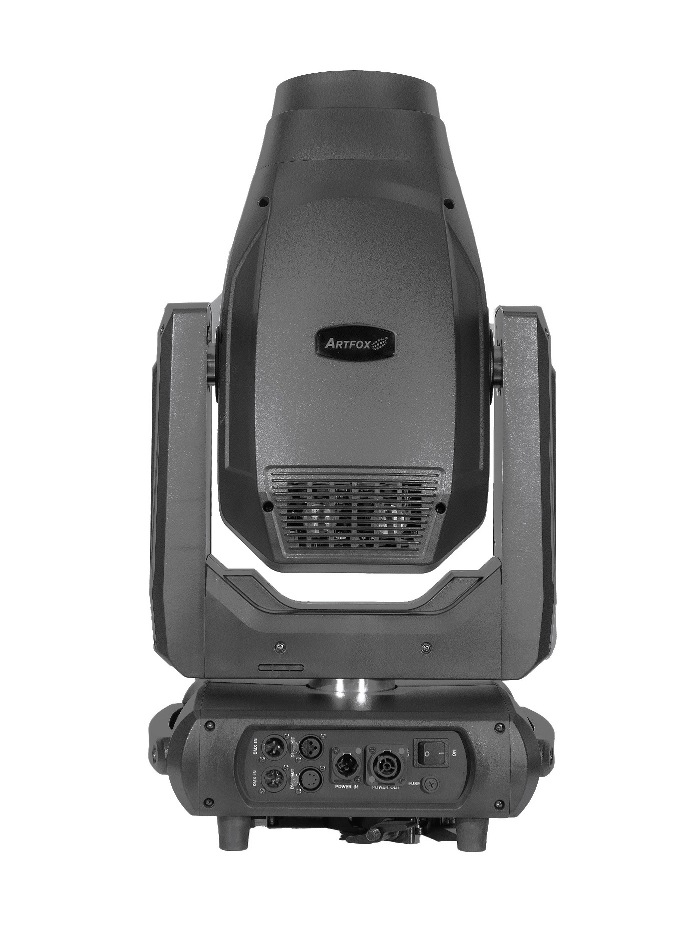

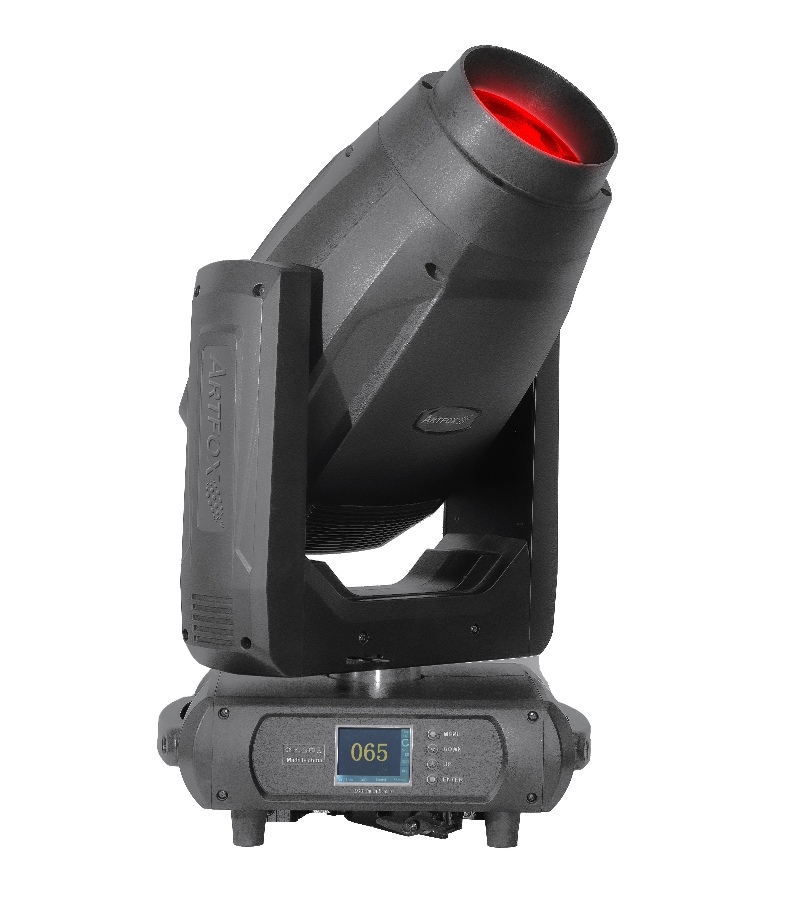

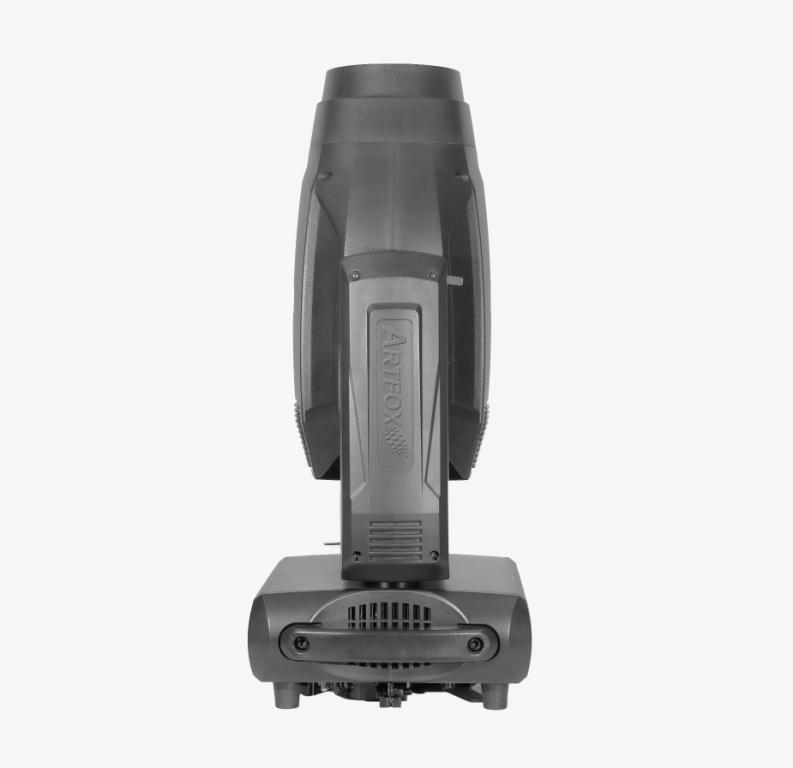

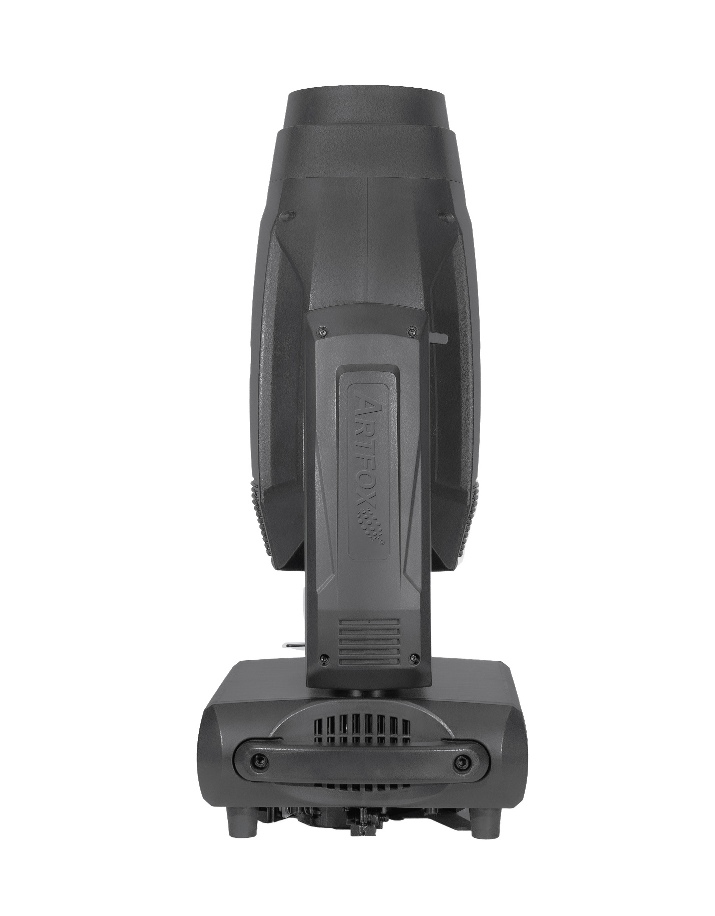

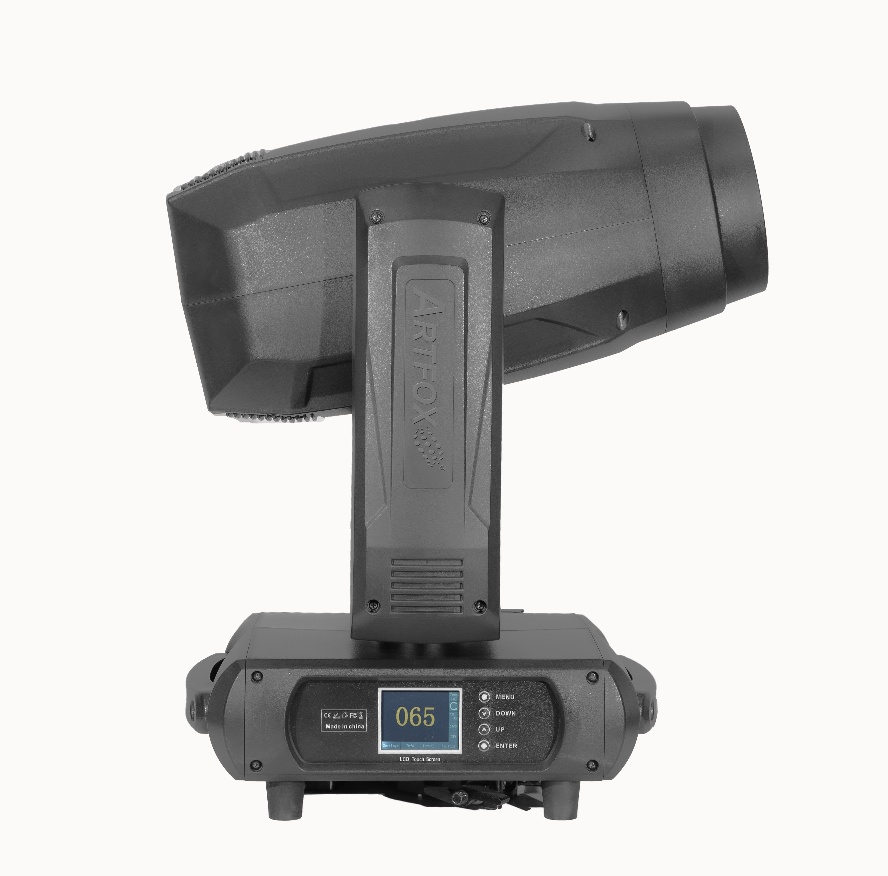

Matrix Hybrid CMY 450W is 450W LED engine CMY Hybrid Moving Head with CMY color mixing, 4 degrees beam, 4-36 degrees spot, frost for Wash.

Features:
All-in-one fixture with 4 - 36° zoom range
Get Narrow beam, spot, and wash effects from a single fixture
CMY color mixing enables you to craft an infinite number of colors
Motorized focus, zoom, and CTO ( color temperature optional)
2 rotating prisms (1 x 5-facet circular and 1 x 3-facet circular)
2 GOBO wheels (1 fixed metal and 1 rotating)
450watt LED engine yields enough output for most large venues and event productions

Light Source:
• 450W Cool White LED Engine
• 50,000 Hour Average LED Life,8,000K

Color:
• Color Wheel: 8+ Open ,CTO
. CTO (color temperature optional(3200k-5600k)
• Full CMY Color Mixing

GOBOs:
• GOBO Wheel 1: 12 Fixed + Open (1 Beam Reducers Beam Mode)
• GOBO Wheel 2: 8 Rotating/Replaceable + Open (Size: 22.8mm; Viewable: 15mm)
• Modular design for easy servicing and GOBO replacement

Effects:
• Zoom Range: 4 ~ 36-degrees
• CTO: 3200k-5600k,Option
• Focus: Motorized
• Frost effect for wash
• Prism 1: Rotating 3-facet Circular
• Prism 2: Rotating 5-facet Circular
• Prism Layering

Connections:
• Power Input: Locking Power IN connection
• AC90-240v, 50/60hz
. RDM function


Control:

• Control Channels: 25ch,AutoRun, Sound Active, Master/Slave
• DMX Modes: 25chs
• Control: 3-pin and 5-pin DMX
• Full color display menu
• Pan / Tilt Correction: Automatic
• Pan / Tilt Lock
• Pan / Tilt Range: 540˚ / 270˚
• Fine Tilt
• Pan/Tilt Speed: Fast to Slow
• Dimming & Fine Dimming: Electronic

Electrical:
• Input Voltage: 100-240V 50Hz/60Hz (Auto change)
• Power Draw: 600W (3.33A @ 120V; 1.81A @ 220V)

Dimensions/Weight:
• Dimensions (LxWxH): 14.3” x 11.4” x 26” / 364 x 290x 660mm
• Weight: 47.3 lbs. / 21.5kg
