Description

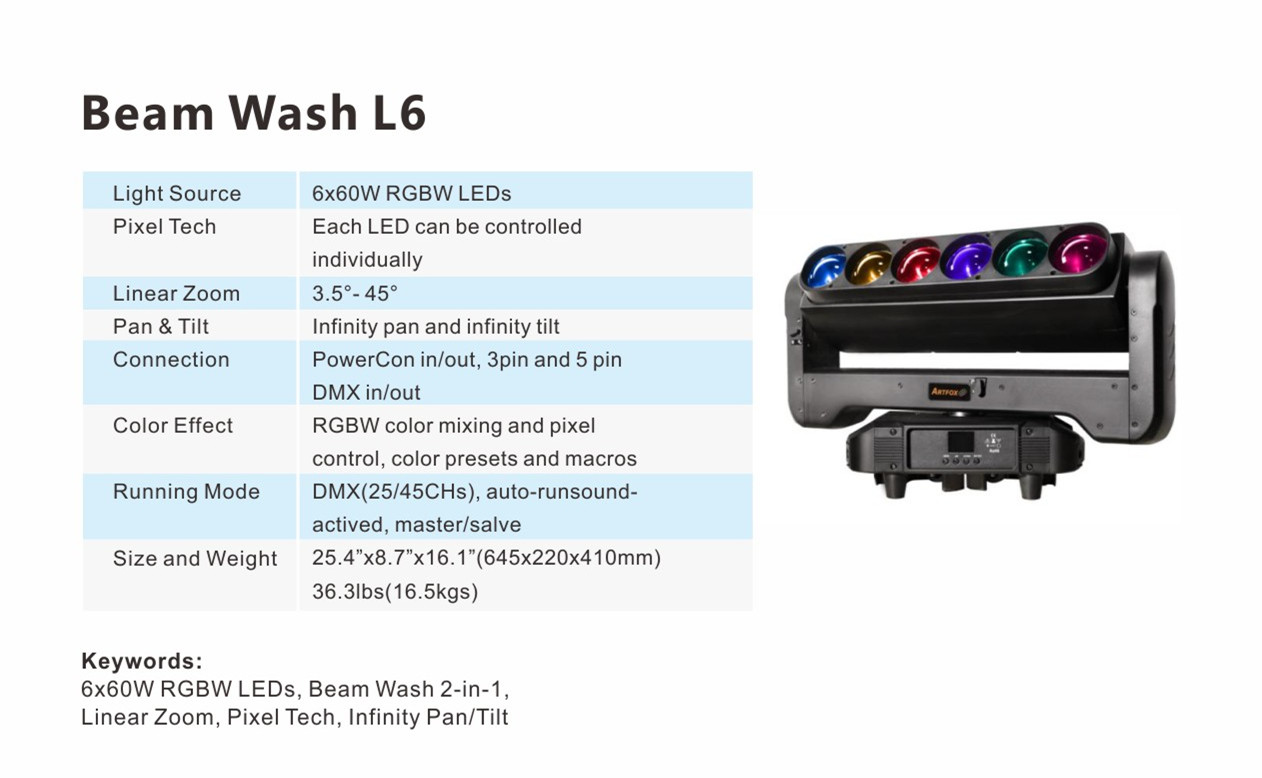

The ARTFOX “Beam Wash L6” a most extremely powerful Wash Effects fixture featuring custom big size designed optics to create extreme color mixing, pixel mapping, pre-programmmed color and 3.5° – 49° zoom range ,Infinite Rotation of Pan and Tilt. Powered by 6pixel mappable (60 W) RGBW LEDs, Crisp beams, a powerful output and quick movements create amazing show, it can handle any application, even aerial washingwith ease.

The Beam Wash L6 features 6-60W RGBW Quad LEDs, pixel mapping ,most power mutil-chip quad-color, the advanced zoom optical system, which range from 3.5-49 degrees . To fit with high-end applications, It also features 16 bit Dimming curve,,excellent color mixing. Extremely quite fans design, 3 section circle control. Because of Special spherical Lens, there are no any leak lights, so the beam effect is narrow and wash effect is super bright.


Features:

Infinite Rotation of Pan and Tilt
(6)60W, ,4 in 1 moving head beam wash with pixel mapping and zoom
Individually 6 pixel control
3.5 degree narrow Beam and 49 degree large bright wash , Beam wash, 2 in 1.
It features folder clamps, extremely powerful output.
Precise and fast movement, silent fans and movement.
16-bit Dimming of master dimmer as well as individual colors for smooth control of fades
Built in colors for quick design possibilities
3.5° - 49° Zoom angle for variable beam sizes


Specifications

SOURCE

(6) 60W RGBW LEDs
60,000 Hour Average LED Life*


EFFECTS

Motorized Zoom (3.5° - 49°)
Linear Color Temperature Presets
RGBW Color Mixing and Pixel Control
Color Presets and Macros
Electronic Strobe and Variable Dimming Curves
16-bit Dimming

CONTROL / CONNECTIONS

2 DMX Channel Modes (25 /32chs)
Infinite Rotation of Pan and Tilt 360 degree
4 Button LCD Menu Display
DMX, RDM,Protocol Support
3 PIN AND 5pin XLR DMX In/Out
PowerCON TRUE1 Power In/Out
Folder Clamps

SIZE / WEIGHT

Length: 25.4" (645mm)
Width: 8.7", (220mm)
Vertical Height:16.1"(410mm)
Weight: 36.3lbs. (16.5 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
400W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS
CE |FCC | cETLus pending | IP20
