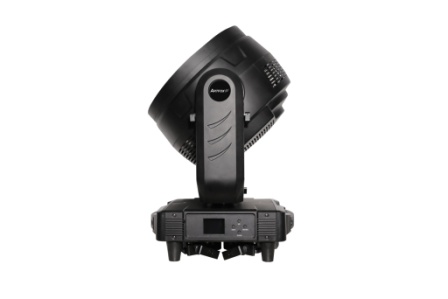

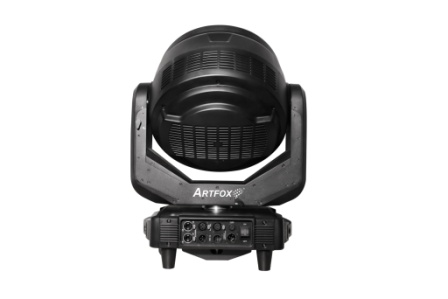

Solar Eye K24

Solar Eye K24

Solar Eye K24

24x60w RGBW LEDs, Beam Wash Kaleido effects 3-in-1, Pixel tech

Price: Inquiry Now

Inquiry:

    Features

    24x60w RGBW Osram leds

    Beam wash Kaleido effects 3-in-1, linear zoom

    Pixel tech

    Excellent optic features: Beam is sharp, Wash is very even

    with folding clamps

    Related Resources: Catalog  Manual

Solar Eye K24 More Video 1

Description

The ARTFOX “Solar Eye K24” a most extremely powerful Wash Effects fixture featuring custom 3 kinds of designed optics to create extreme color mixing, pixel mapping, pre-programmmed color and 3.0° – 49° zoom range. Powered by 24 (60 W) RGBW LEDs, it can handle any application, even aerial washingwith ease.

The Solar Eye K24 features 24x60W RGBW Quad LEDs, most power mutil-chip quad-color, the advanced zoom optical system, which range from 3.0-49 degrees . To fit with high-end applications, It also features 16 bit Dimming curve,,excellent color mixing. Extremely quite fans design, 3 section circle control. Because of Special spherical Lens, there are no any leak lights, so the beam effect is narrow and wash effect is super bright.


Features:

(24)60W, Osram, 4 in 1 moving head beam wash with pixel mapping and zoom
3.0 degree narrow Beam and 49 degree large bright wash , Beam wash, 2 in 1.
It features folder clamps, extremely powerful output.
Precise and fast movement, silent fans and movement.
16-bit Dimming of master dimmer as well as individual colors for smooth control of fades
Built in colors for quick design possibilities
3.0° - 49° Zoom angle for variable beam sizes

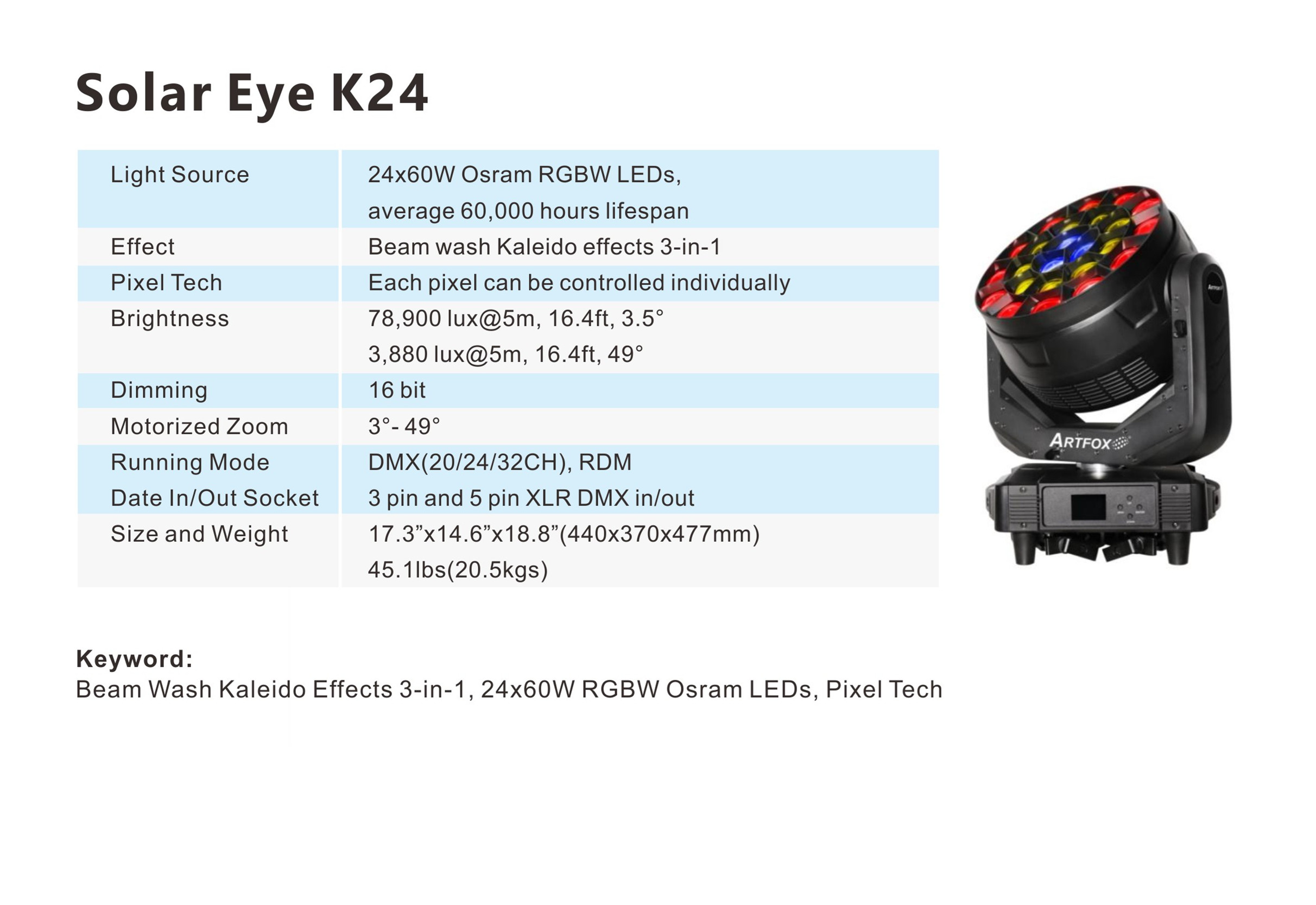

Specifications

SOURCE

(24) 60W Osram RGBW LEDs
60,000 Hour Average LED Life*


EFFECTS

Motorized Zoom (3.0° - 49°)
Pan: 540° Tilt: 270°
Linear Color Temperature Presets
RGBW Color Mixing and Pixel Control
Color Presets and Macros
Electronic Strobe and Variable Dimming Curves
16-bit Dimming

CONTROL / CONNECTIONS

3 DMX Channel Modes (20 /24/32chs)
Fast and precise Pan and Tilt Movement
4 Button LCD Menu Display
DMX, RDM,Protocol Support
3 PIN AND 5pin XLR DMX In/Out
PowerCON TRUE1 Power In/Out
Folder Clamps

SIZE / WEIGHT

Length: 17.3" (440mm)
Width: 14.6", (370mm)
Vertical Height:18.8"(477mm)
Weight: 45.1lbs. (20.5 kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
1500W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS
CE |FCC | cETLus pending | IP20

Summary
