Pixel Beam K7

Pixel Beam K7

Pixel Beam K7

7x15W RGBW LEDs, sharp beam,special lens

Price: Inquiry Now

Inquiry:

Description

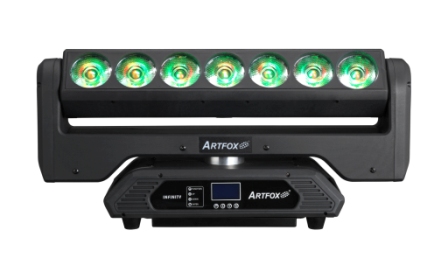

Pixel Beam K7 is unique design moving bar effect lighting fixtures featuring (7) individual 15W RGBW 4-in-1 LEDs and the new advanced optic lens (85% optic efficiency
• High-efficiency 67 mm optics), which combined produce a laser-like homogenized 3.9° color-changing beam from each lens which combined produce a 29° beam angle. Features include fast and precise 16-bit continuous double rotation on PAN/TILT axes, full individual pixel control, strobe, and selectable dimming curve effects, DMX, 3/5pin XLR, powerCON, connections, Its unique feature is the layout of its seven RGBW LED sources in-line, paired with the highly intensive angle of the optics, which allow the creation of light curtains with genuine overall consistency.

Features:
Unique design Beam Moving Bar Effect Luminaire
New Advanced optical Lens(90% optic efficiency
• High-efficiency 67 mm optics)
(7) Pixel Control RGBW 4-in1 LEDs , 15W.
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation, The 2 Tilt Rotations to provide awesome effect
Flicker free sources management, suitable for TV applications and all video recorded events
Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues due to new advanced Lens (67mm)


LED Source:
Source Type: (7) 15W RGBW 4-in-1 LEDs, 50,000 hours lifetime

EFFECTS
Individual Pixel Control
Strobe and Selectable Dimming Curves

CONTROL / CONNECTIONS
(3) DMX Channel Modes (12/15/39chs)
4 Button Touch Control Panel
LCD Menu Display

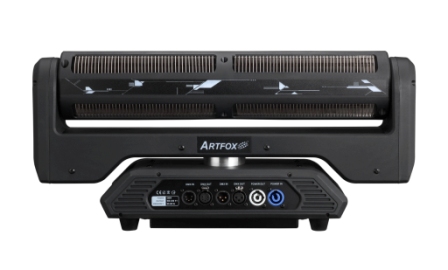

3pin, 5pin DMX In/Out
powerCON Power In/Out

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
150W Max Power Consumption
-13°F to 113°F (-25°C to 45°C)

APPROVALS / RATINGS
FCC| CE | RoHs Compliant | IP20

SIZE / WEIGHT:
Length: 22.6” (575mm)
Width: 7” (180mm)
Vertical Height: 9.8” (250mm)
Weight: 20.15 lbs. (10.5 kg)

Inquiry for Pixel Beam K7

We will reply you in 24 hours, and please feel free to call +1-(323)287-5559 or email to sales@artfox.net
