Description

Powerful Bar Strobe,Pixel Mapping, Eye Candy.

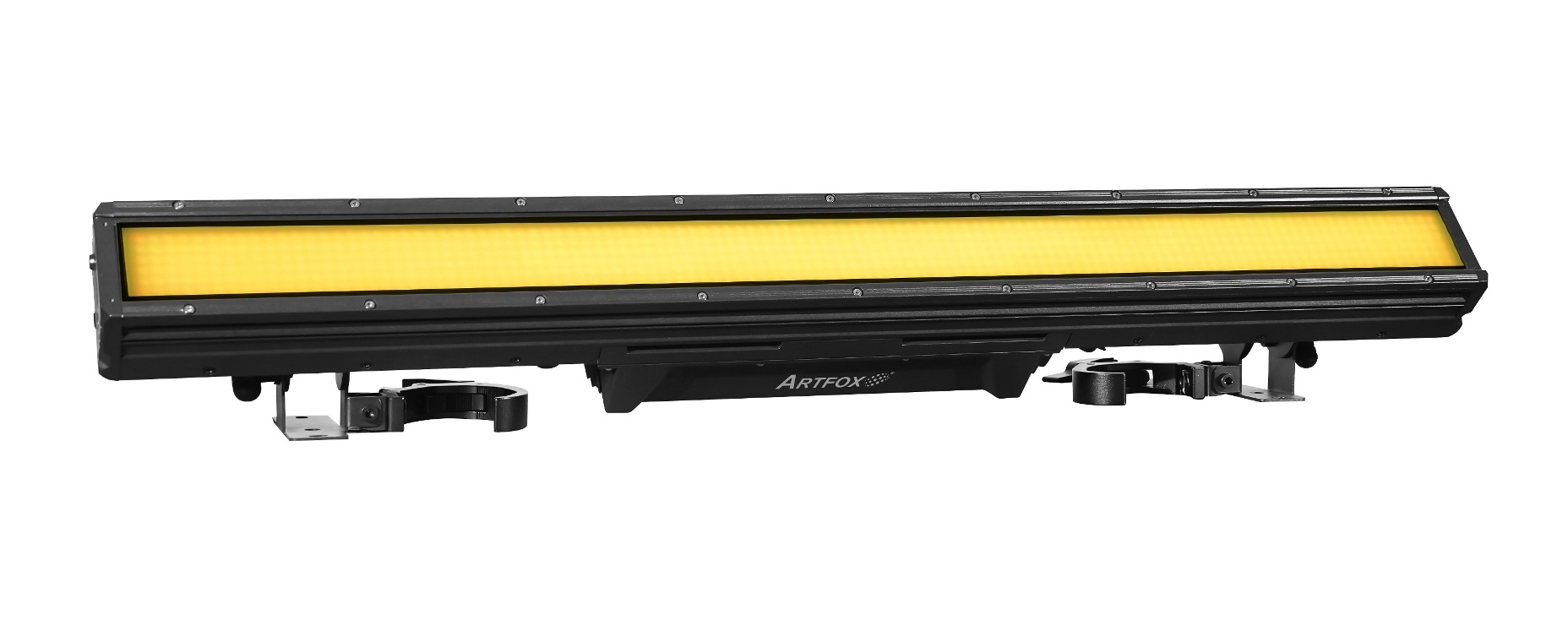

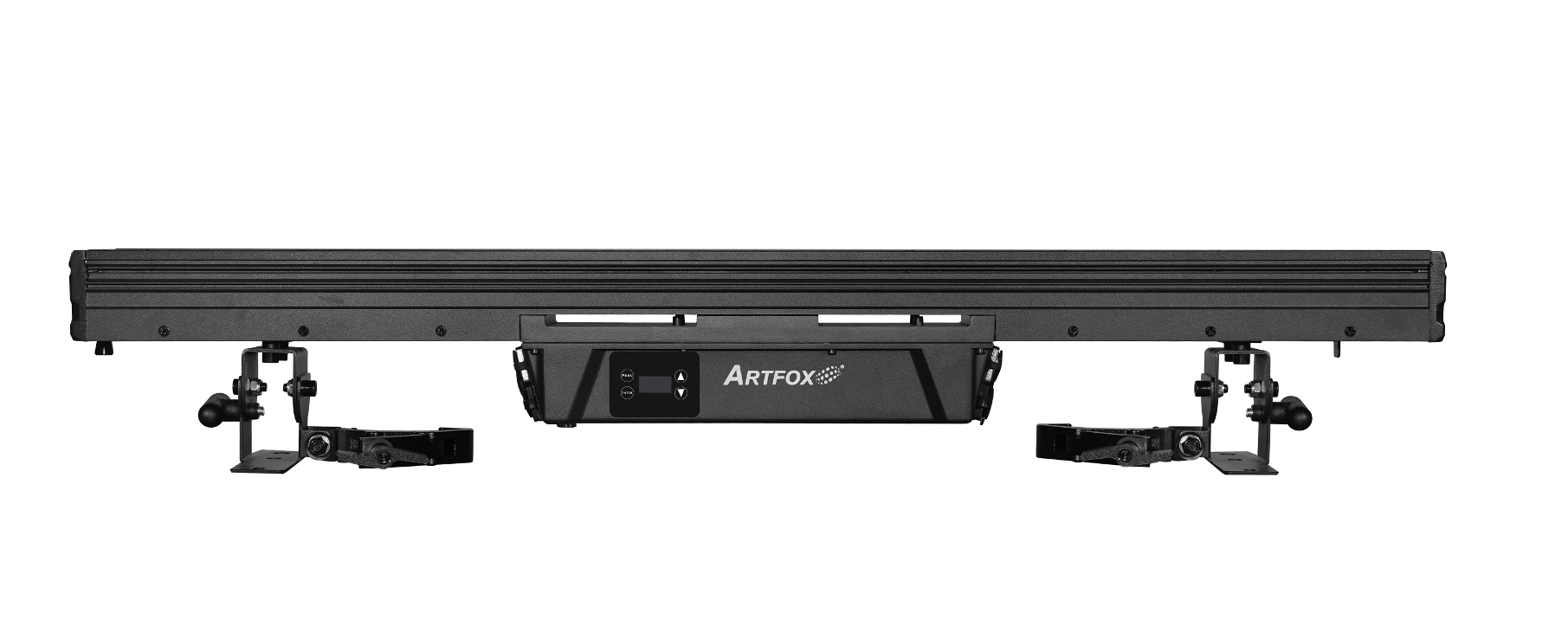

PowerBar Strobe is an IP65 rated multi-functional wash linear fixture is also engineered with wonderful square sections that can be controlled individually, appear seamlessly together without separation and create an endless variety of color control and pixel mapping effects. The unit is IP65 rated and equipped with DMX and RDM protocols.


Features:

IP65 rated – quick splice design.
High powerful strobe with diffuser, Variety pixel mapping effects with eye candy.
Modular structure for easy maintenance


Light Source:

Strobe Tube:
LED Type: 3535 5W 6500K LEDs
LED Count: 144
LED Colors: Cool-White
LED Segments: 16
Strobe Panel:
LED Type: 5050SMD 2W RGBW 4 in1
LED Count: 242
LED Colors: Cool-White
LED Segments: 32 (2x16)


Construction:

Display: OLED display with function buttons
Data In/Out: Seetronic IP65 rated, 5-pin DMX In/Out (Ture 1), Artnet date in-out for option.
Wireless 2.4G for optional.
Power In/Out: Seetronic Ture 1
All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring Applications
Modular structure for easy maintenance


Control:
• DMX channel modes:13chs/64chs/89chs, 20chs(artnet)
• Built-in internal programs, Pixel bar,
• unlimited individually controlled sections with Zone Control
• 0-100% Dimming + smooth 16-bit Dimming
• 16 bit Dimming Curve Modes• Control Mode: DMX512, RDM (Remote Device Management)
• With Wired Digital Communication Network, RDM

Electrical:
• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
• Power consumption:700W max

Dimensions & Weight:
• Dimension (LxWxH): 39.4” x 7.2” x 3.7” / 100x181x93mm
• Weight: 19.6 lbs. / 8.9 kg.

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
