Description

Sky Beam 9R is upgraded from Sky Beam 7R, it is super bright, Powered by 260w R9 lamp, compact size, fast movement.

Features:
YODN R9 260w lamp
Two Prisms wheel ( total 5 prisms, 11 prisms effects. )
Frost
6 colors Rainbow Effects
Linear Dimming
13 fixed gobos (8 fixed gobos + 5 replaceable gobos) + Open
13 colors + Open
Touch color screen
PowerCon in/out

Specifications:

Lamp: YODN R9 260w lamp
power: AC 100-240v,50/60HZ

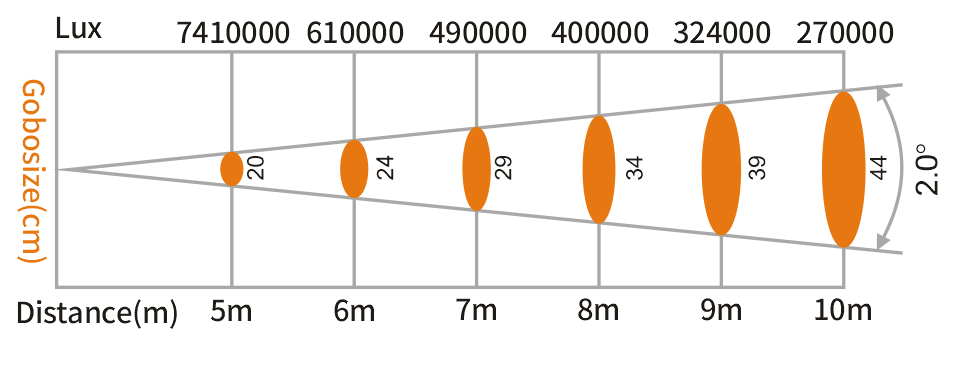

Electronic Focus: 20m 70000LUX
Special Advantage: Super bright, compact size

Technical parameter:
Zoom: 0-3.8 degree
Focus: Electric 20 meters light output. 80000 lux
Color: 13 colors + White replaceable color wheel
Gobo: 13 fixed gobos (8 fixed gobos + 5 replaceable gobos)
Prims: Total two prism wheels, 5 prisms.
   First wheel: 8 facet circular prism, 6 facet Linear prism, Frost.
   Second wheel: 16 facet circular prism, 6+12 facet circular prism, 4+8+8 facet circular prism.
Linear light filter
A mechamical shutter speed stroboscopic effect
A mechanical dimmer
Strobe：Double lens strobe (0.5-9 times/ second)
Control mode：Standard DMX512, Automatic, Master/ slave mode
Channel：18 CH
Controller can open the lamp and reset, including delaying function
Weight：14kg (31 lbs)
