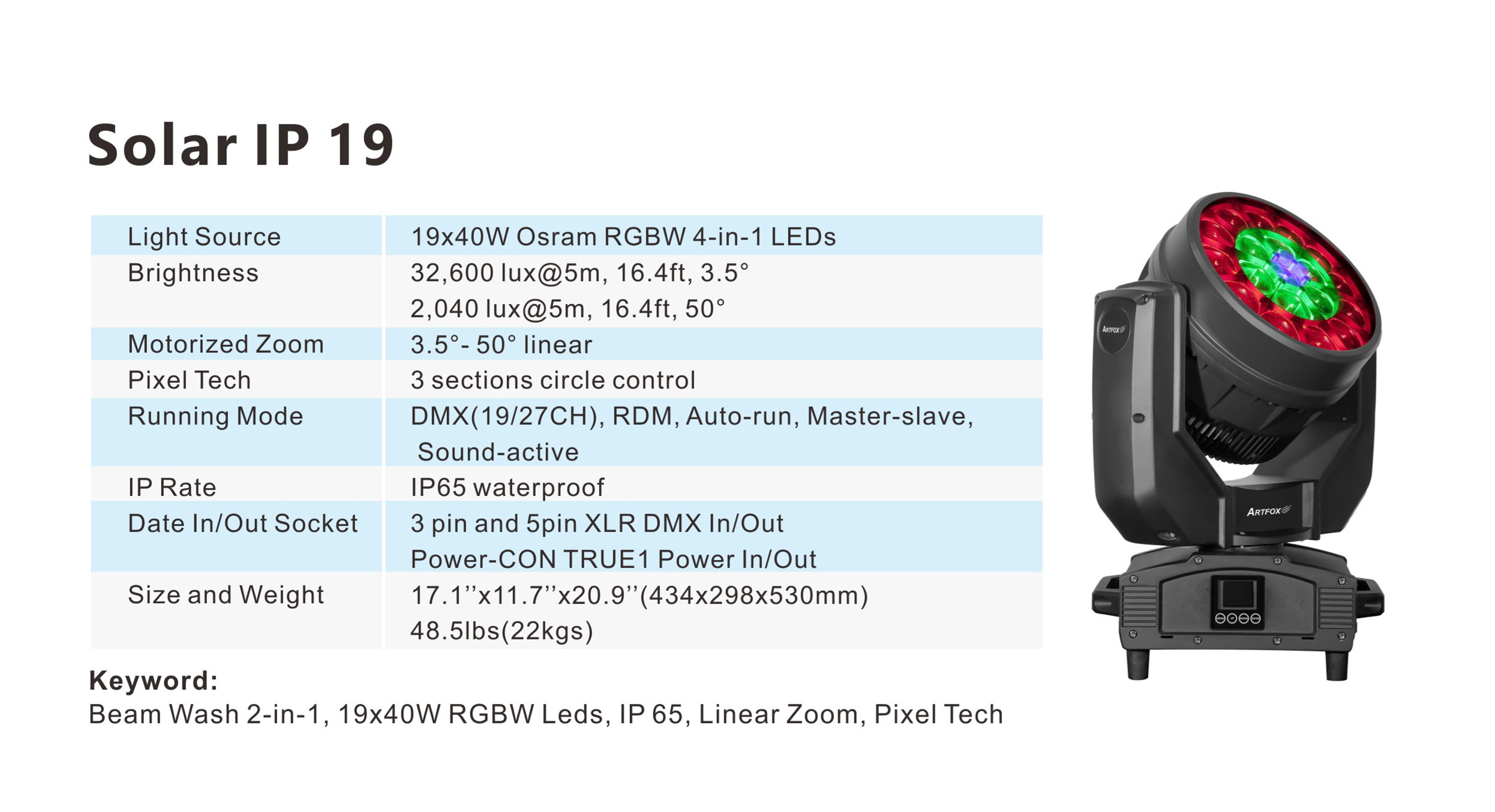

Description

Solar IP 19 is gentle mechanical focusing, rainbow effect, circle control effect, large focusing range, wide dyeing area RGBW color mixing system, full light range dimming; smooth and uniform, low noise and high efficiency fan cooling system; fast strobe 1~25Hz ; Preset a variety of color macro functions; preset a variety of effect macro functions.

Features:
19x40W RGBW, Osram, 4 in 1 moving head beam wash with pixel mapping and zoom
3.5 degree narrow Beam and 50 degree large bright wash , Beam wash, 2 in 1.
It features folder clamps, extremely powerful output.
Precise and fast movement, silent fans and movement.
16-bit Dimming of master dimmer as well as individual colors for smooth control of fades
Built in colors for quick design possibilities
3.5° - 50° Zoom angle for variable beam sizes

Specifications
SOURCE
(19) 40W Osram RGBW LEDs
50,000 Hour Average LED Life*

EFFECTS
Motorized Zoom (3.5° - 50°)
Pan: 540° Tilt: 270°
Linear Color Temperature Presets
RGBW Color Mixing and Pixel Control
Color Presets and Macros
Electronic Strobe and Variable Dimming Curves
16-bit Dimming

CONTROL / CONNECTIONS
2 DMX Channel Modes (19 /27)
Fast and precise Pan and Tilt Movement
1.8 inch TFT LCD screen, 180 degree, 4 Button LCD Menu Display
DMX512, RDM, Auto-run, Master-slave, Sound, Manual
3 PIN AND 5pin XLR DMX In/Out
TRUE1 Power In/Out
Folder Clamps

SIZE / WEIGHT
Length: 17.1" (434mm)
Width: 11.7" (298mm)
Vertical Height:20.9"(530mm)
Weight: 48.5lbs (22 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
800W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS
CE |FCC | cETLus pending | IP65
