Description:

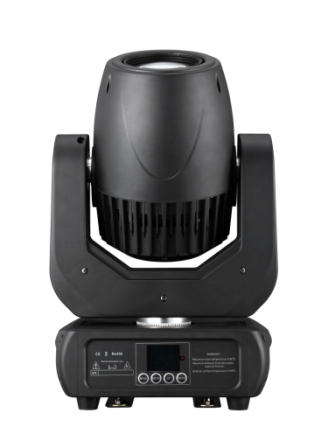

Dragon Spot use Unique Design Powerful LED SPOT 150W, 2 gobo wheel , 8 colors ,3 facet prism, MotorizedFocus, 3 phase motor on Pan/Tilt
ARTFOX NEW Dragon Spot features a new 150W Cool White Solid State LED engine, a 16° beam, 8 dichroic colors, 7 rotating-interchangeable glass gobos, 8 static gobo, 3-facet prisms, motorized focus, variable dimming curves, high speed mechanical shutter and strobe, hibernation mode, 3 and 5pin DMX in/out connections,180° full color reversible LCD menu display with 4 button touch control panel, , flicker free operation for TV and FILM.

FEATURES

150W Cool White Solid State LED Spot Luminaire
16° Beam, 8 Dichroic Colors
6 Rotating-Interchangeable Glass Gobos +Open
7 static gobo+ open
3-Facet Rotating Prisms ( 2 direction)
3 Phase motor on Pan/Tilt
High Speed Mechanical Shutter and Strobe
Motorized Focus and Variable Dimming Curves
Flicker Free Operation For Broadcast TV and FILM

ELECTRICAL / THERMAL
Voltage: AC90-240V, 50/60HZ
Power Consumption: 230W Max

SOURCE
150W Solid State Cool White LED Engine
20,000 Hour Average LED Life
3,850 LUX @16.4’ (5m) (16° Full ON)

COLOR
7 Dichroic Colors + Open
GOBOS ( 2 gobo wheel)
6 Interchangeable-Rotating / Indexing Glass Gobos + Open
7 Dichroic gobo+ open

EFFECTS
3-Facet Rotating Prisms and Prism Macros
MotorizedFocus
High Speed Mechanical Shutter and Strobe
Variable Dimming Curves

CONTROL / CONNECTIONS
(4) DMX Channel Modes (10 / 14 / 16)

Structure
4 Button Touch Control Panel
Full Color LCD Menu Display
3 Phase Motor on Pan/Tilt ( Ultra Fast ,precise silent movement)
1/4 turn fastening Omega Clamps
8 / 16 Bit Resolution Adjustable Movement

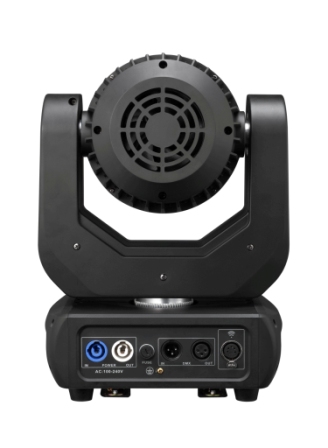

3pin / 5pin DMX In/Out
powerCON In

APPROVALS / RATINGS
FCC| CE | ROHS | IP20

SIZE / WEIGHT
Length: 10.9” (276mm)
Width: 10.7” (272mm)
Vertical Height: 18.8” (480mm)
Weight: 30.4 lbs. (13.8 kg)
